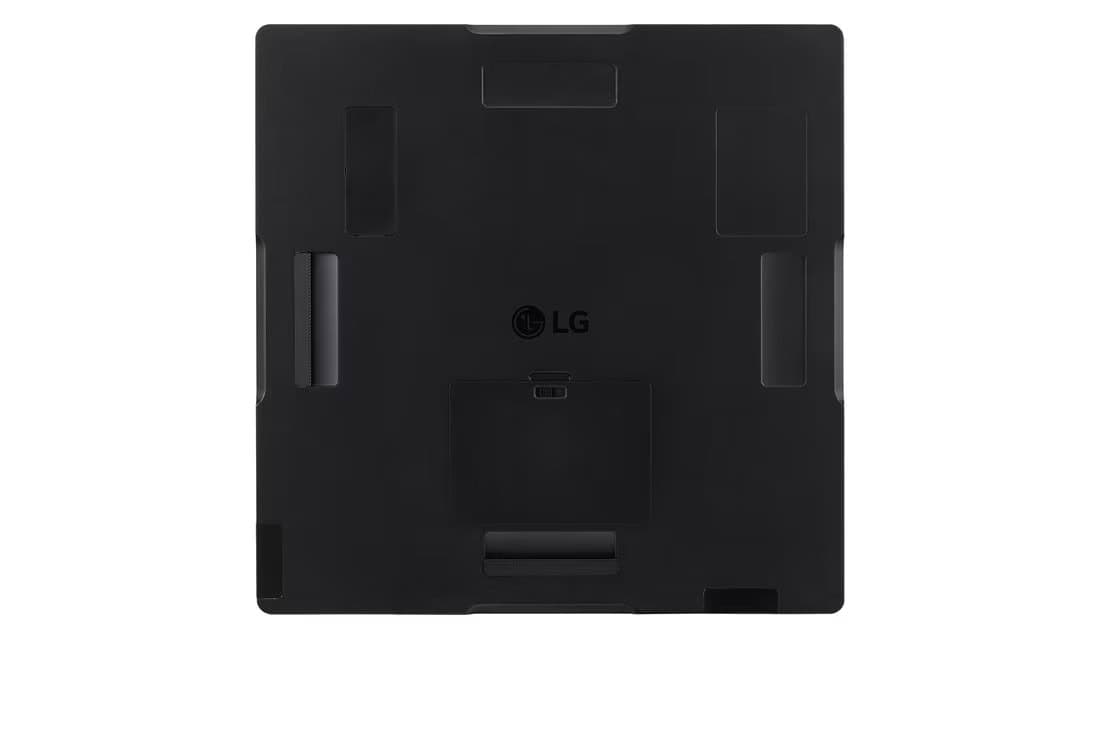

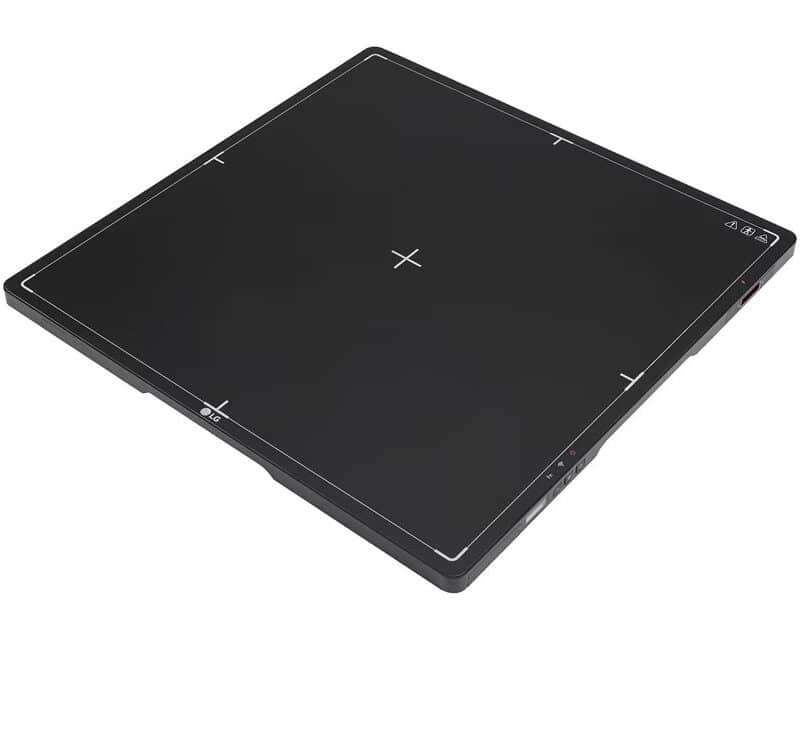

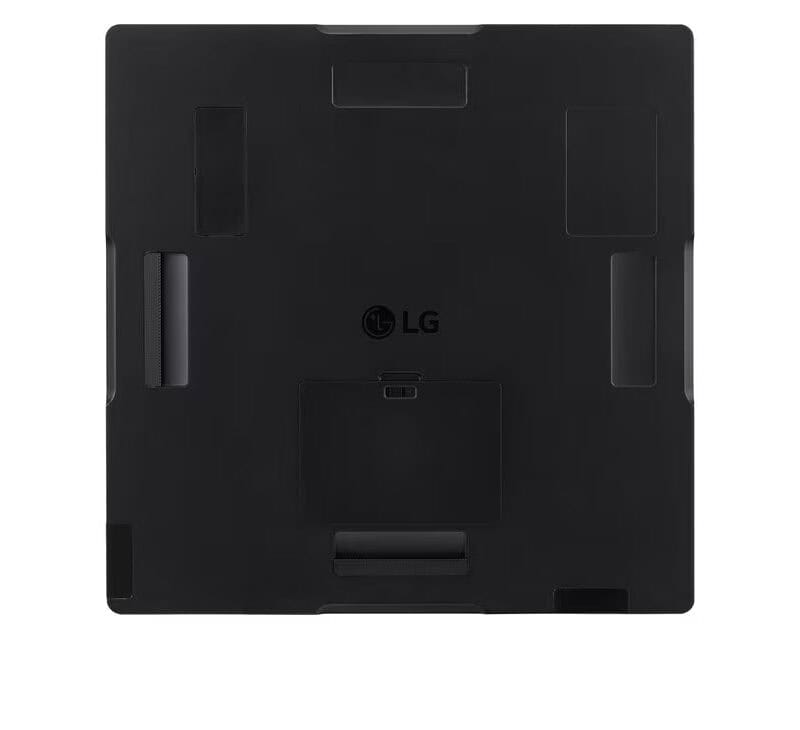

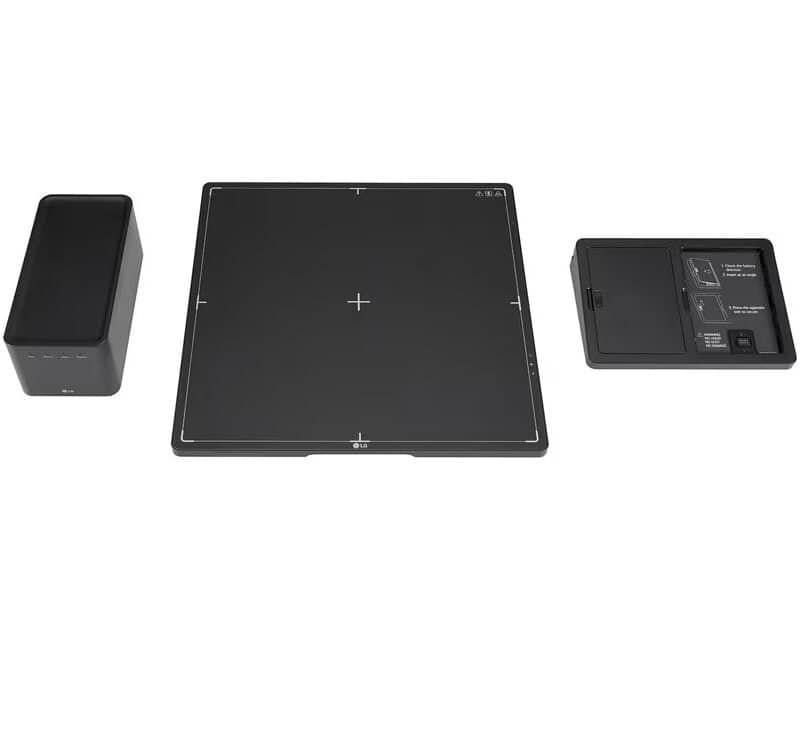

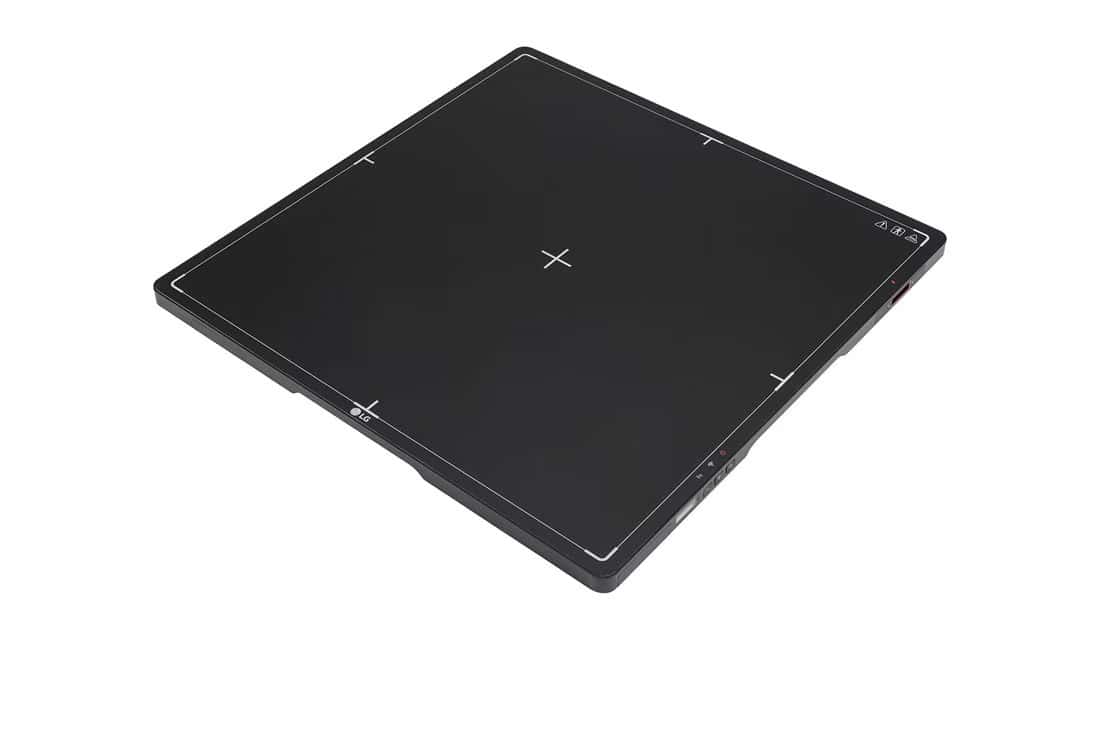

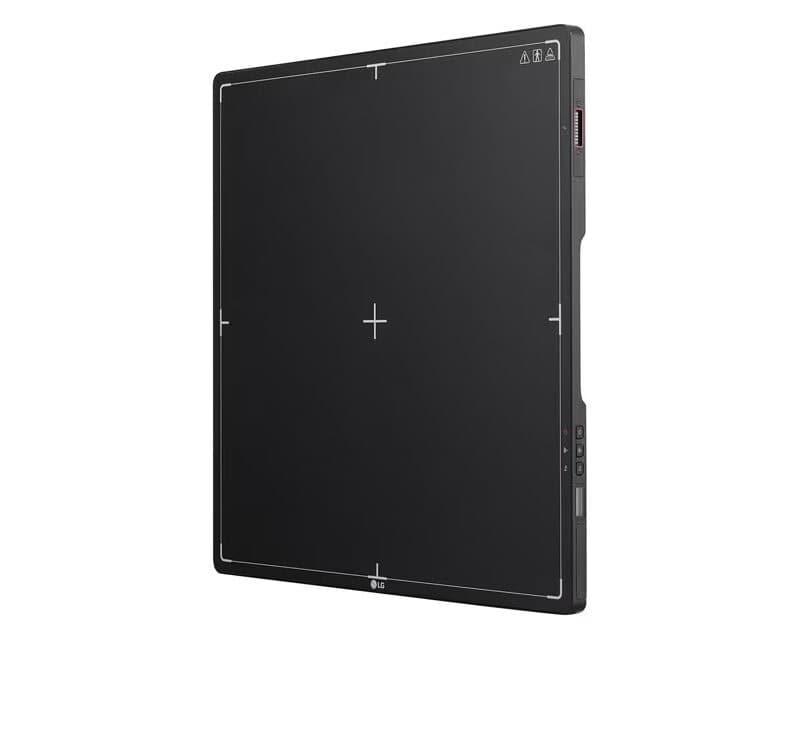

LG (17HQ701G-BP) Digital X-ray Detector with a-Si TFT technology. IP68-rated, it supports 400kg, survives 1.5m drops, and has a 7.5-hour battery. Lightweight with an OLED display, swift image transfer, and stores 200 images locally.

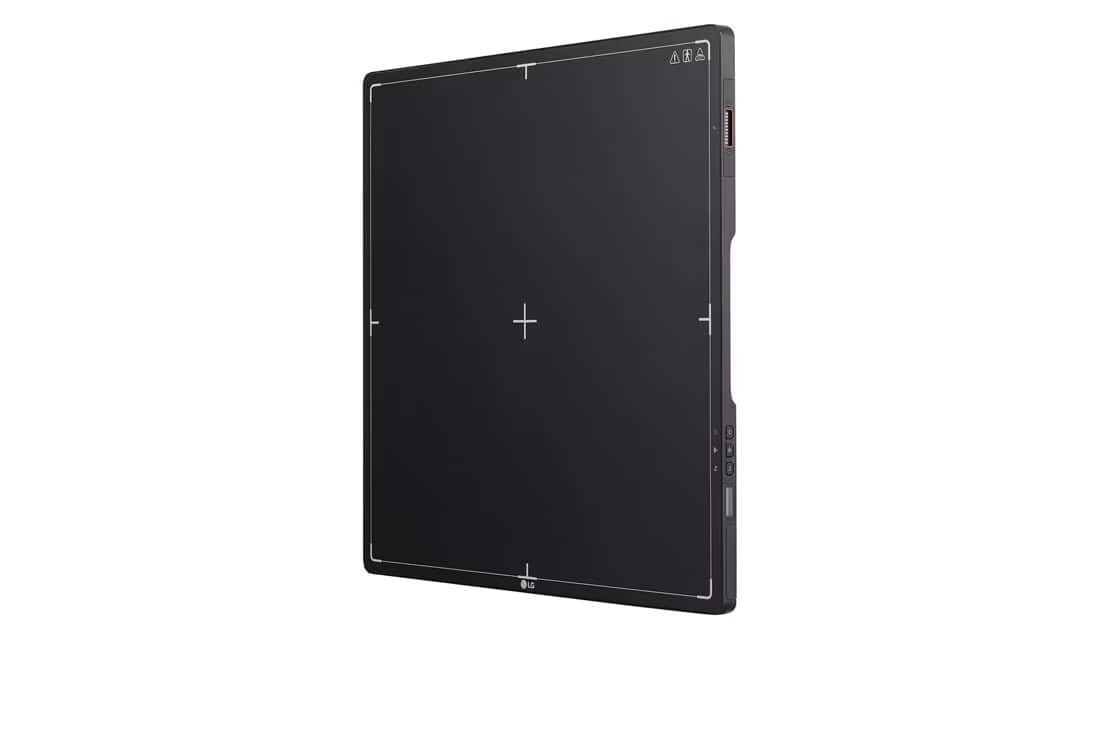

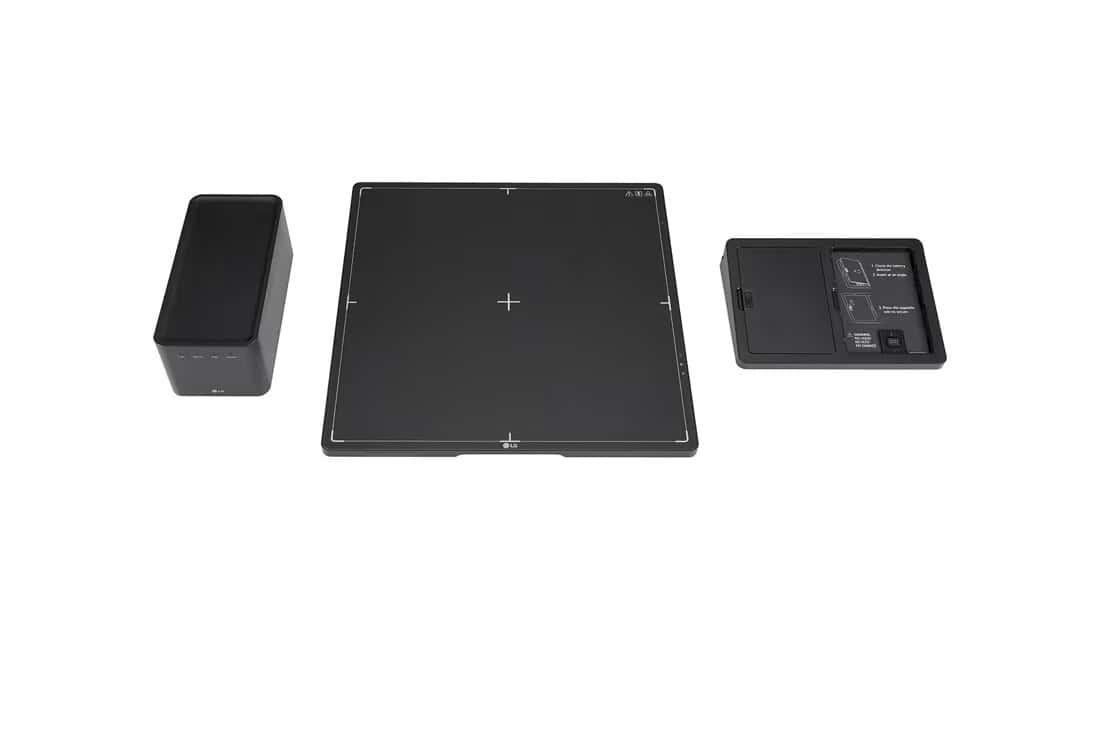

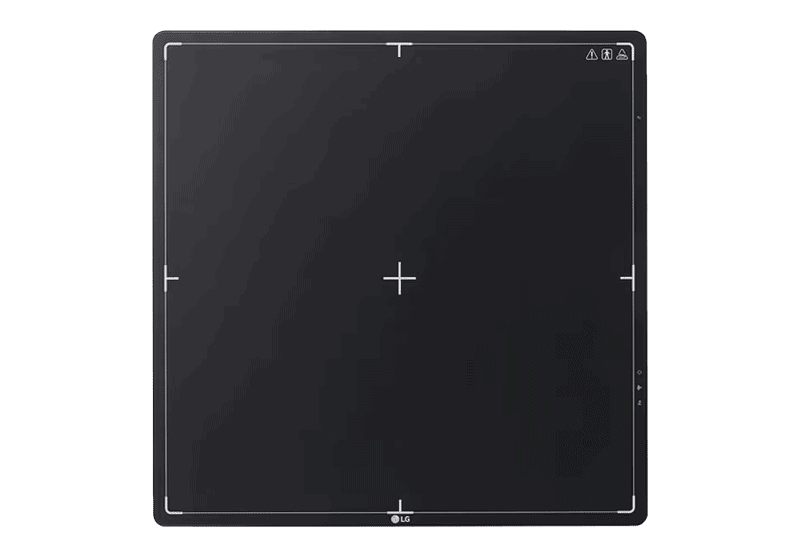

17″ x 17″ Digital X-ray Detector with a-Si TFT
17″ x 17″ Digital X-ray Detector with a-Si TFT
- 16bit A/D conversion
- IP68, Magnesium & Carbon-fiber Body
- Raw Image in 1.5 sec.(Wired) / 2.5 sec.(Wireless)
- Max. Uniform Load : 400kg / Max. Point Load : 200kg
- 17″x17″
Additional information
| Application | General Radiography |
|---|---|
| TFT Type | A-Si |
| Scintillator | Csi |
| Number of Pixels | 3072 x 3072 |
| Pixel Pitch | 140 |
| TFT Dimensions (WxDxH, mm) | 445 x 445 |
| TFT Active Area (mm) | 430.08 × 430.08 |
| X-ray Sensitive Pixel | 3072 x 3072 |
| X-ray Sensitive Area (mm) | 430.08 x 430.08 |
| Sensor Protection Plate | Carbon Fiber Plate |
| Input | DC24V/2.1A |
| Power Consumption | Typ. 38W |

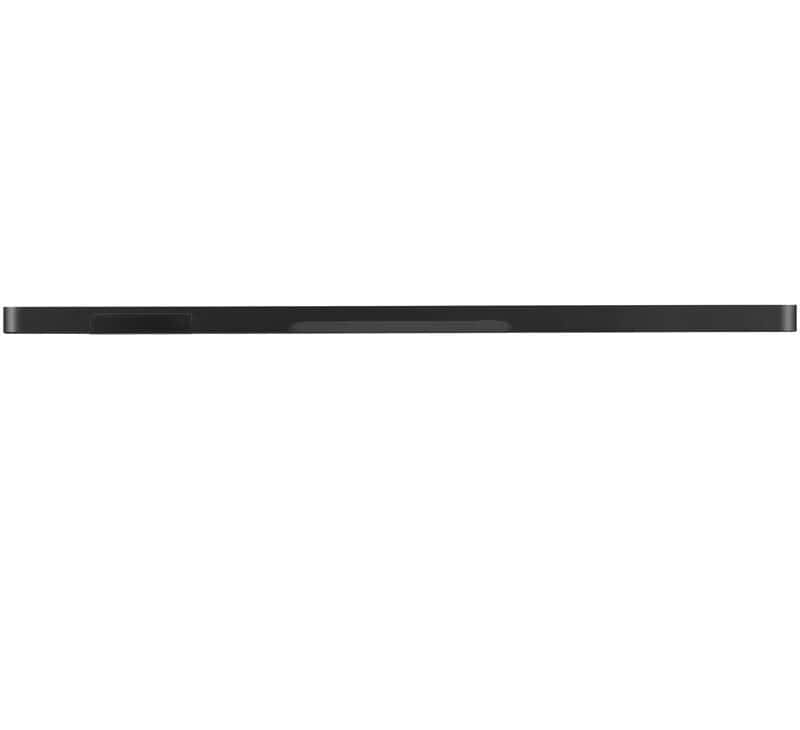

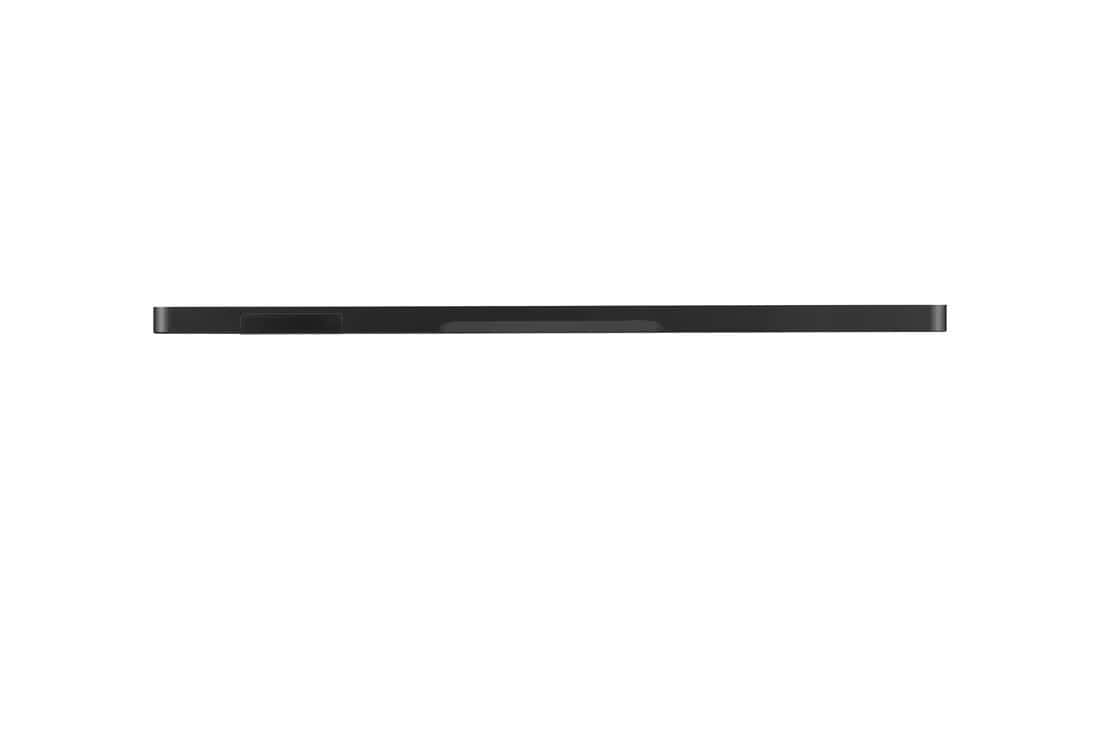

| Dimensions (WxDxH, mm) | 460 x 460 x 15.6 |
| Weight (kg) / Incl. Battery (Typ.) | 3.7 kg |
| Maximum Full Load Weight (Uniform Load) | 400kg |
| Maximum Point Load Weight (Point) | 200kg |
| Falling (IEC60601-1 Test Condition) | 1.5m |
| Cycle Time (Wired / Wireless) | 4.5sec / 5sec |
| Full Image (Raw Image) (Typ.) *without window time | Wired 1.5 sec / Wireless 2.5 sec |
